Small Hotels Seawater Desalination Machine Reverse Osmosis System

1.0 Sets
MOQ
Small Hotels Seawater Desalination Machine Reverse Osmosis System
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Applicable Industries: Hotels, Manufacturing Plant, Farms, Construction works , Energy & Mining
Showroom Location: Indonesia, Morocco
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Pressure vessel, Pump, Bearing, Motor, PLC
Material: containerized
Weight: 1000kg
Size: standard
Power: 10kw-50kw
Warranty: 1 Year
Productivity: 2000L/Hour
Weight (KG): 1000 kg
Capacity: 100-1000t/d
Function: Producing Fresh Water
Dimension: 20FT/40FT container
Voltage: 220V / 380V
swro Salt rejection rate: 99%
Certification: CE ISO
Colour: White/ Black/Bule
After Warranty Service: Video technical support
Local Service Location: Morocco
Informations de base
Certification: CE ISO
Conditions de paiement et expédition
Packaging Details: Brackish Reverse Osmosis Water Purification System : Wooden case for small system. Container for large system
Supply Ability: 10 Set/Sets per Month Brackish Reverse Osmosis Water Purification System
Description de produit
Desalination Process

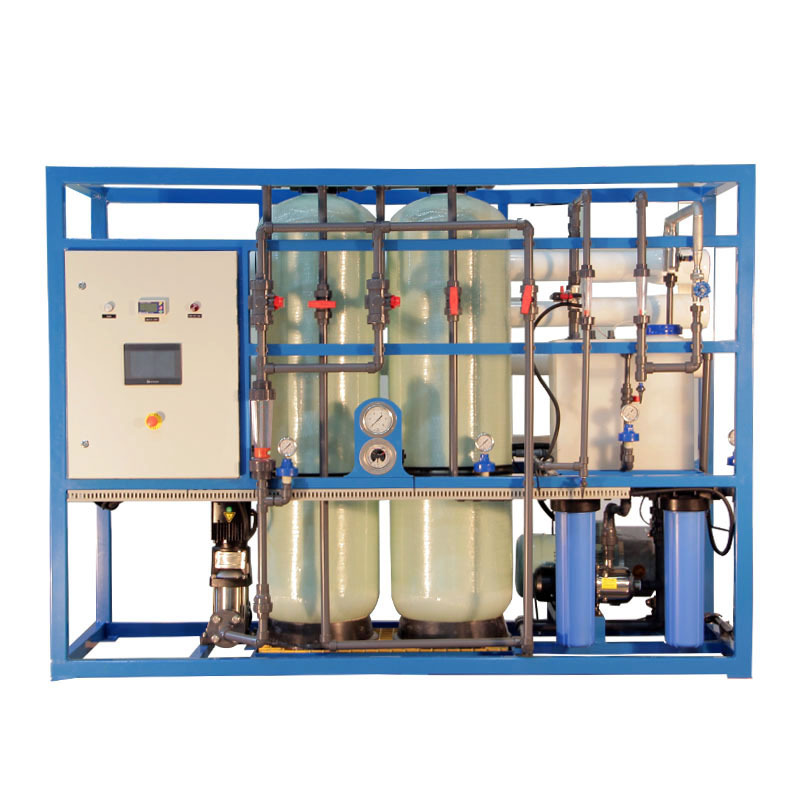

fastRO R series Seawater Reverse Osmosis (SWRO) machine is a small all-in-1 system, with most parts installed in 1 skid. The fresh water production capacity is 270 to 1,080 liters/hour (1.2-4.8 USgpm). With most parts pre-installed, time and cost are save greatly on site.
Cage and all-in-1 design not only protects the watermaker from damage during operating and transportation, but also save installation time on site. fastRO R is designed and manufactured on the basis of the industrial standard:
ASME, ASTM, IEC, etc.fastRO R has been CE approved.

Details Images
Specification
Technical Date
Unit
R-6(A)
R-12(A)
R-18(A)
R24(A）
Rated Product Flow
m3/d
6.24
12.48
18.72
24.96
Rated Recovery Rate
%
26
32
32
32
Rated Feed Flow
m3/h
1.00
1.63
2.44
3.25
Min System Pressure
barg
20
20
20
20
MaxSystem Pressure
barg
70
70
70
70
RO Membrane Spec.
inch
4040
4040
4040
4040
RO Membrane Qty.
pcs
2
4
6
8
Weight(dry)
kg
430
460
680
710
Lenght×Width×Height
cm×cm×cm
160×180×170
160×180×170
250×90×180
250×90×180
Rated Power
kW
2.5
3.9
5.8
7.5
Energy Consumption
kWh/m3
9.52
7.58
7.38
7.21
installed Power
kW
4.1
5.1
7.15
9.15
-E series Rated Power
kW
1.5
2.4
3.4
4.4
-E series Energy Consumption
kWh/m3
5.86
4.69
4.36
4.23
-E series Installed Power
kW
3.3
4.1
5.65
7.15
Notes:
1) The rated product flow and rated recovery rate are based on the design feed (35,000 ppm, 20°C standard seawater), other recovery rate could be reachable, contact us for details.
2) The normal operating system pressure shall be higher than the minimum system pressure above. Higher maximum system pressure could be applicable upon request.
3) The dry weight excludes water (operating or other).
4) The rated power and energy consumption calculation are based on a design feed (35,000 ppm, 20°C standard seawater), the rated flow and rated recovery rate. The calculation include the power of feed pump, high pressure pump (HPP), energy recovery device(ERD), cleaning in place (CIP) Pump, but exclude the power of intake pump and product distribution pump.
5) Installed power include feed pump, HPP and CIP pump.
Our products can be applied in many fields to bring you the healthiest water!
Our Advantages

1. Stability and reliability: nearly 30 years of experience in the design of desalination systems.
2. Quick installation and commissioning: Most of the installation is completed before delivery.
3.Better filtration: 3 steps filtering process including sand filter, pre-filter and main filter to ensure better protection for high pressure pump and RO membrane.
4.Long life: Using Sch40 duplex (EN1.4462/UNS S32205) high pressure pipe and fittings, SS304 frames and heavy duty powder coating.
5.Low noise & vibration level: Using high pressure hose and vibration damper.
Related Products

fastRO C

https://qtenvirotech.en.alibaba.com/product/1600157944016-807171124/RO_Seawater_Desalination_System_machine_plant_unit.html

fastRO C

https://qtenvirotech.en.alibaba.com/product/1600295514643-807171124/Mobile_Seawater_Desalination_Machines_RO_System_Producing_Fresh_Water.html

iDesalt BWC

https://qtenvirotech.en.alibaba.com/product/1600144459194-822103939/Brackish_Water_Ro_Membrane_Desalination_Price_Machine_system_equipment_for_Sale_Container_1000l_hour_Productivity.html

iDesalt AGRO

https://qtenvirotech.en.alibaba.com/product/1600145141930-822103939/Container_Desalination_Brackish_Water_to_Drinking_Water_Small_Machine_system_Price_for_Agriculture.html
Company Profile

QT Group is a corporation dedicated on membrane separation, with the expertise of water treatment over 30 years.
"Processing seawater and wastewater into valuable resource", QT ENVIRO-TECH LTD was established in 2011 and aims to be the leading solution provider for seawater desalination and waste water recycling. We value trustworthiness, people-oriented and continuously improving.
Certifications
Our Services
                   Services Availble
● Online support

● Free spare parts

● Install supervision

● Commissioning

● Operating&Maintenance support

● Troubleshooting and repairing
FAQ
Q:What's the information you need to know before Inquiry?
A1.Type of raw water.
2. Raw water quality report.
3.Water quality requirements for produced water.
4.Brands of important accessories.

Q:How can I know your machine works well?
A:Before delivery, we shall test the machine working condition for you.

Q.Are you a factory or trading company?
A:Ours is a water treatment machinery and equipment factory with 30 years of design experience.

Q: How much will it cost?
A:The price is affected by water quality, process, configurations, etc.
Provide the above information to get a quote quickly.

Q:Where is your factory located? How can I contact you?
A:
Name: QT Enviro-Tech (Suzhou) Ltd.
Add.Block 3, No. 2 Shuangma St, Suzhou, China
Tel.:+86 512 8666 9191
Fax:+86 512 8666 9191-807
Website:www.iDesalt.com

Q:How long is your delivery time?
A:Nomally 6-10 weeks
